Umatshini osisigxina weMagnet ye-Synhronous Gearless Traction THY-TM-K200

Umatshini osisigxina weMagnet we-Synchronous Gearless Traction THY-TM-K200 Umfanekiso okhoyo

Inkcazelo emfutshane:

Umbane: 380V

Ukurhweba: 2:1/4:1

I-Brake: DC110V 2×1.3A

Ubunzima: 350kg

Max.Static Load:4000kg

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

Iithegi zeMveliso

Iiparamitha zeMveliso

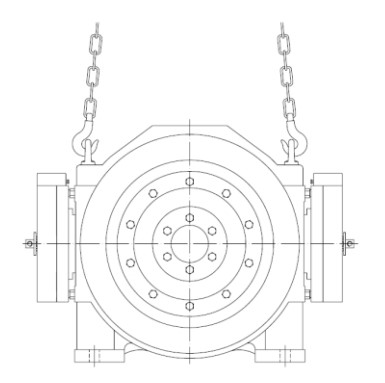

Umzobo wokuphakamisa

I-Voltage	380V
Ukurhweba	2:1/4:1
Iqhoboshi	DC110V 2×1.3A
Ubunzima	350kg
Umthwalo omkhulu	4000kg

Izinto Eziluncedo Zethu

1.Ukuhanjiswa ngokukhawuleza

2.Intengiselwano sisiqalo nje, inkonzo ayipheli

3.Udidi:Umatshini wokutsala THY-TM-K200

I-4.Sinokubonelela ngoomatshini be-synchronous kunye ne-asynchronous traction ye-TORINDRIVE, MONADRIVE, MONTANARI, FAXI, SYLG kunye nezinye iimpawu.

5.Ithemba lulonwabo! Andisoze ndilahle ithemba lakho!

Uyilo kunye nokuveliswa kwe-THY-TM-K200 yemagnethi esisigxina ye-synchronous gearless elevator traction machine ithobela "GB7588-2003-Safety Code for Elevator Production and Installation", "EN81-1: 1998-Imigaqo yoKhuseleko yoLwakhiwo lwe-Elevator kunye noFakelo", "204 Imimiselo yeTraction-E8 ye-Tr. Umatshini wokutsala uqulunqwe yi-motor esisigxina ye-synchronous motor, ivili le-traction kunye nenkqubo ye-braking usebenzisa izinto ezisebenza ngokusisigxina zemagnethi kunye nesakhiwo esikhethekileyo se-motor, ineempawu zesantya esiphantsi kunye ne-torque yangaphandle, kunye nenkqubo ye-brake i-bhloke ye-brake isakhiwo kunye ne-brake edibeneyo ye-motor ixhotyiswe nge-micro switch yokubeka iliso kwimeko ye-braking Xa i-brake ivuliwe, uqhagamshelwano oluqhelekileyo oluvulekileyo lwe-micro switch ivaliwe Ilungele i-elevator enegumbi lomatshini kunye ne-elevator ngaphandle kwegumbi lomatshini Umlinganiselo we-traction ngu-630KG ~ 1150KG, i-5 ~ 2 0 0. kunye ne-450mm umatshini ngamnye wokutsala udlula uhlolo olungqongqo lwekhwalithi ngaphambi kokushiya umzi-mveliso ukuqinisekisa umgangatho kunye nokusebenza kwemveliso.

1.Ufakelo lomatshini wokutsala

•Ngaphambi kokufaka umatshini wokutsala, kufuneka uqinisekise amandla ofakelo lofakelo kunye nesiseko.

• Xa uphakamisa umatshini wokutsala, nceda usebenzise ikhonkco lokunyusa okanye umngxuma kumzimba womatshini wokutsala.

• Xa uphakamisa, qiniseka ukuba uphakamisa ngokuthe nkqo, kwaye i-engile phakathi kweehuku ezimbini kufuneka ibe ngaphantsi kwe-90 °.

• Inqwelo-moya yokufakela umatshini wokutsala kufuneka ilingane, kwaye kufuneka kubekho imilinganiselo yokunciphisa intshukumo ehambelanayo.

• Intambo yocingo lwentsimbi ejingayo kunye nomthwalo ohambelanayo kufuneka udlule kwinqwelomoya esembindini wesithungu sokutsalela ngokuthe nkqo.

• Qinisekisa ukuba umphezulu wesakhelo apho umatshini wokutsala ufakelwe sicaba kwaye owona mlinganiselo uphezulu uvumelekileyo ukutenxa yi-0.1mm.

•Ivili lesandla segumbi lomatshini lisezantsi ekhohlo ngasemva kweyunithi engundoqo. Nceda uqaphele ukuphazamiseka kwesakhelo.

• Ubungakanani beebholiti zokulungisa umatshini wokutsala uxhotyiswe ngemingxuma yeenyawo, kwaye iibholiti ezinamandla ze-8.8 zisetyenziswa.

• Ngokuqhelekileyo umatshini wokutsala uxhotyiswe ngentonga yokuchasana kunye nekhava ekhuselayo, nceda uyibuyisele emva kokufaka intambo yocingo.

2.Ukulungiswa komatshini wokutsala

• Ukugunyaziswa komatshini wokutsala kufuneka kwenziwe ngamagcisa aqeqeshiweyo.

• Umatshini wokutsala unokungcangcazela ngexesha lolungiso. Nceda ulungise umatshini wokutsala ngokuthembekileyo phambi kokuba ulungise ingxaki.

• Ukuze wenze umatshini wokutsala usebenze kakuhle, nceda usete inverter ngokwedatha ekwi-nameplate kwaye uzifundele ngokwakho.

• Ukuba ngaba umsebenzi wokuzifundela usetyenziswa, intambo yocingo kufuneka iqhawulwe kwaye isiqhoboshi sibe namandla kwaye sisebenze ngokwesiqhelo.

•Imvelaphi ye-encoder ukuzifundela ubuncinci amaxesha amathathu, kwaye ukutenxa kwexabiso leengile yokuzifundela kufuneka kube ngaphakathi kwe-5 degrees.

3.Umatshini wokutsala uyasebenza

• Nceda ubaleke uye phambili ujike umva ngesantya esiphantsi (isantya sokuhlola) kuqala ukuze uqinisekise ukuba isixokelelwano sisebenza ngokuqhelekileyo.

• Nceda ubaleke ngesantya esiguquguqukayo kangangexesha elithile ngelixa ubeka esweni ukuba umsinga osebenzayo ungaphakathi koluhlu olufanelekileyo.

• Xa uqhuba kwisantya esilinganisiweyo se-elevator, ukulungiswa kwenduduzo yemoto kunokusetwa ngokwemilinganiselo ehambelanayo ye-inverter.
