IiNtsontelo zocingo lweNtsimbi ye-elevator ekumgangatho ophezulu

Iintambo zeNtsimbi zeLifti zoMgangatho oPhezulu oFakelweyo

Inkcazelo emfutshane:

Ezona ziphakamisi zincinci zisetyenziselwa iintambo zeelevator. Kwizithili zorhwebo zokuhlala, iinkcukacha zentambo ye-elevator ziyi-8*19S+FC-8mm, 8*19S+FC-10mm.

Thumela i-imeyile kuthi

Iinkcukacha zeMveliso

Iithegi zeMveliso

Iiparamitha zeMveliso

I-1.Le nkcazo ifanelekile kwintambo ye-speed limiter wire, isantya esiphantsi, i-elevator ephantsi yomthwalo

2.Singenza kwakhona ngokweemfuno zakho.

I-Nominal Rope Diameter	6*19S+PP	Ubuncinci bomthwalo wokuqhawuka
	Ubunzima obuqikelelweyo	I-Dual Tensile, uMpa		Single Tensile,Mpa
	Ubunzima obuqikelelweyo	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
6	12.9	17.8	19.5	18.7	21
8	23	31.7	34.6	33.2	37.4

I-1.I-Natural fiber core (NFC): Ifanelekile intambo yocingo yomatshini wokutsala kunye nesantya esilinganiselwe ≤ 2.0m/s

2.Building ukuphakama≤80M

I-Nominal Rope Diameter	8*19S+NFC	Ubuncinci bomthwalo wokuqhawuka
	Ubunzima obuqikelelweyo	I-Dual Tensile, uMpa		Single Tensile,Mpa
	Ubunzima obuqikelelweyo	1370/1770	1570/1770	1570	1770
mm	Kg/100m	kN	kN	kN	kN
8	21.8	28.1	30.8	29.4	33.2
9	27.5	35.6	38.9	37.3	42
10	34	44	48.1	46	51.9
11	41.1	53.2	58.1	55.7	62.8
12	49	63.3	69.2	66.2	74.7
13	57.5	74.3	81.2	77.7	87.6
14	66.6	86.1	94.2	90.2	102
15	76.5	98.9	108	104	117
16	87	113	123	118	133
18	110	142	156	149	168
19	123	159	173	166	187
20	136	176	192	184	207
22	165	213	233	223	251

1.Kwi-IWRC, isantya>4.0 m/s, Ubude besakhiwo> 100m

2.Ku-IWRF,2.0< isantya≤4.0m/ s, Ukuphakama kwesakhiwo≤100m

I-Nominal Rope Diameter	8*19S		Ubuncinci bomthwalo wokuqhawuka
	Ubunzima obuqikelelweyo		Single Tensile,Mpa
	Ubunzima obuqikelelweyo		1570		1620		1770
	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF	IWRC	IWRF
mm	Kg/100m		kN		kN		/	kN
8	26	25.9	35.8	35.2	36.9	35.2	40.3	39.6
9	33	32.8	45.3	44.5	46.7	45.9	51	50.2
10	40.7	40.5	55.9	55	57.7	56.7	63	62
11	49.2	49	67.6	66.5	69.8	68.6	76.2	75
12	58.6	58.3	80.5	79.1	83	81.6	90.7	89.2
13	68.8	68.4	94.5	92.9	97.5	98.5	106	105
14	79.8	79.4	110	108	113	111	124	121
15	91.6	91.1	126	124	130	128	142	139
16	104	104	143	141	148	145	161	159
18	132	131	181	178	187	184	204	201
19	147	146	202	198	208	205	227	224
20	163	162	224	220	231	227	252	248
22	197	196	271	266	279	274	305	300

Ulwazi lweMveliso

Ezona ziphakamisi zincinci zisetyenziselwa iintambo zeelevator. Kwizithili zorhwebo zokuhlala, iinkcukacha zentambo ye-elevator ziyi-8*19S+FC-8mm, 8*19S+FC-10mm. Udederhu lweevenkile zisebenzisa iinkcukacha zentambo ye-elevator enkulu kancinane eyi-12mm, 13mm, kunye nomthwalo wentambo yentsimbi yeelevator eyi-12mm, 13mm, kunye ne-16mm ububanzi.

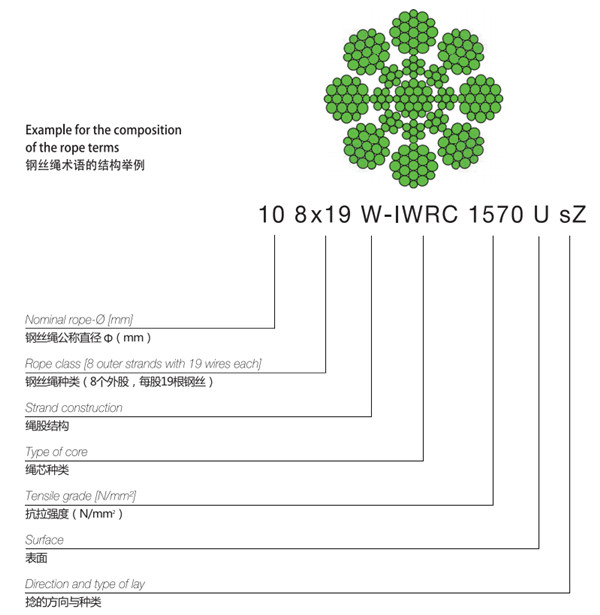

Ukuodola intambo yentsimbi, uyacelwa ukuba usinike ulwazi olupheleleyo njengoko kuchaziwe ngezantsi:

1. Injongo: yeyiphi intambo eza kusetyenziswa;

2. Ubungakanani:Ububanzi bentambo kwimilimitha okanye i-intshi;

3. Ulwakhiwo: Inani leentambo, inani leengcingo ngomsonto ngamnye kunye nodidi lwesakhiwo sesitendi;

4. Uhlobo lweNqaku: Undoqo weFiber(FC), undoqo wentambo yocingo ozimeleyo (IWRC) okanye undoqo wocingo oluzimeleyo (IWSC);

5. Ukulala: Ukulala okuthe tye, ukulala okuthe tye, ukulala okuthe tye, ukulala okusekunene, ukulala okusekhohlo,

6. Izinto eziphathekayo:Intsimbi ekhanyayo (engafakwanga), igalvanized okanye intsimbi engenastainless;

7. IBanga locingo: Ukuqina kweengcingo;

8. Ukuthanjiswa: Nokuba kuyafunwa okanye akufunwa kwaye kuyafuneka isithambiso;

9. Ubude: ubude bentambo yocingo;

10. Ukupakisha: Kwikhoyili esongelwe ngephepha le-oyile kunye nelaphu lehesian okanye kwiireli zomthi;

11. Ubungakanani: Ngenani leekhoyili okanye iireli ngobude okanye ubunzima;

12. Amanqaku: Amanqaku okuthumela ngenqanawa kunye nazo naziphi na ezinye iimfuno ezikhethekileyo.

Ngethuba lokusebenza kwexesha elide, ioli yokuthambisa kwintambo yocingo iya kuncipha ngokuthe ngcembe. Ngoko ke, kuyimfuneko ukuba intambo yocingo ifakwe rhoqo i-lubricated, enokwandisa ubomi benkonzo yentambo yocingo, kunye nokunciphisa ukugqoka kunye nokuthintela ukugqwala ngokuhlaziya. Xa kuthelekiswa nentambo yentambo ethanjiswe ngokupheleleyo, ubomi benkonzo yentambo yocingo elomileyo bungancitshiswa ukuya kuthi ga kwi-80%! Ukuhlaziywa kwentambo yocingo kudlala indima ebaluleke kakhulu. Sidla ngokukhetha i-oyile yokuthambisa i-T86, elulwelo olucekeceke kakhulu olunokungena lula ngaphakathi kwintambo yocingo. Ifuna kuphela ibrashi okanye umphanda ophathwayo we-1 ilitha ukuyitshiza. Indawo yokusetyenziswa kufuneka ibe yindawo apho intambo yocingo ichukumisa isithungu sokutsala okanye ivili lesikhokelo, ukuze isithambisi sentambo yocingo singene lula ngakumbi kwintambo yocingo.
