Isixhobo se-2-Amagqabi uMziko wokuVula ucango lokuHlalisa i-THY-LD-B
1. Indlela yokuvula kukuvula ipaneli yomnyango kwaye uphumelele uvavanyo lwempembelelo ye-pendulum ye-45Kg.
2. Umnyango unyanzelekile ukuba uvale ngesando esinzima, kwaye isando esinzima kunye nebhubhu yesikhokelo sibekwe kwicala langaphakathi lomnyango wokuhlalisa.
3. Isitshixo socango siluphumelele uvavanyo lweZiko loHlolo lwe-Elevator kaZwelonke saza safumana isiqinisekiso se-CE ne-CU-TR.
4. I-voltage esebenzayo yokukhiya umnyango: ≤ AC230V, ≤ DC110V.
1. Ukufakwa kwe-sill kunye nekhava yomnyango
1.1. Ukugqiba indawo yokungena kunye nokuphuma kwe-sill ngokobukhulu be-hoistway; lungisa iziko le-sill ukuba lifane neziko lokungena kunye nokuphuma, kwaye uphawule umbindi we-sill; lungisa umgangatho we-sill ukuba ube ngaphantsi kwe-1/1000; Umphezulu wokuthintela amanzi ukuba angangeni kwi-hoistway.

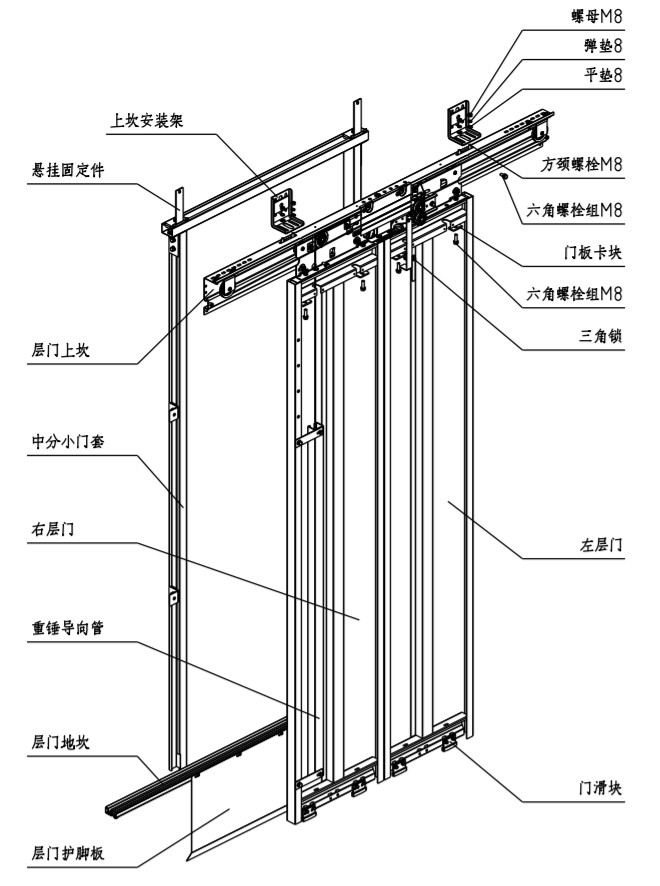

1.2. Hlanganisa ikholomu yokuvala umnyango kunye nomnyango wokuvala umnyango kunye neziqwenga zokudibanisa, kwaye ufake iinxalenye zokuxhoma ukuxhoma; faka umnyango kwi-sill, ulungelelanise ukuqina kwekholam yesivalo somnyango ukuba ube ngaphantsi kwe-1/1000; umbindi wesigqubuthelo socango uhambelana neziko lokungena kunye nokuphuma kwiSill centre mark measurement; ubungakanani beplani yebunzi elisezantsi lekhava yomnyango kunye neplani ephezulu ye-sill kubude bomnyango womnatha. Emva kokuba uhlengahlengiso lugqityiwe, tshixa i-M8 flange nut. Emva kokulungelelanisa ubungakanani, lungisa ikhonkco yekholomu eludongeni.
1.3. Lungisa umlindi wocango lokumisa kwi-sill.
2. Ukufakwa kwesixhobo sokungena emnyango

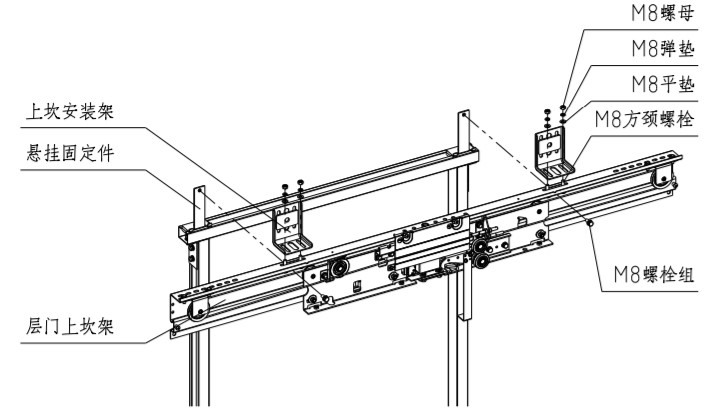

2.1. Ukulungelelanisa isakhelo se-sill ephezulu yomnyango wokumisa kunye ne-barb kwisiphelo esisezantsi senxalenye yokumisa ukumiswa, kwaye utshixe isakhelo se-sill ephezulu kunye nenxalenye yokumisa ukumiswa komnyango wokumisa ngeqela le-M8 * 20.
2.2. Lungisa isakhelo sokuxhoma se-sill ephezulu kudonga lwe-hoistway kunye neebholithi zokwandisa okanye iibholithi zodonga. Isakhelo sokuxhoma i-sill ephezulu kunye nomnyango wokumisa umnyango ophezulu udityaniswe ngamabholiti entamo ye-M8.
2.3. Lungisa i-sill ephezulu yomnyango wokumisa ngasekhohlo nasekunene ukwenza iziko lomnyango livuleke kunye neziko lokungena kunye nokuphuma lihambelana.
2.4. Lungisa ukuqina komgangatho wesixhobo sokungena emnyango. Ukulungelelanisa umgangatho womgangatho wesixhobo sokumisa umnyango ukuya kwi-± 0.5mm ngokubeka umgca othe nkqo okanye uthabathe ucango lwemoto njengesalathiso.
2.5 Emva kokuphonononga iiparamitha eziphambili zofakelo lwesakhelo se-sill kule minyango ilandelayo yomgangatho, qinisa zonke iibholithi zokufakela:

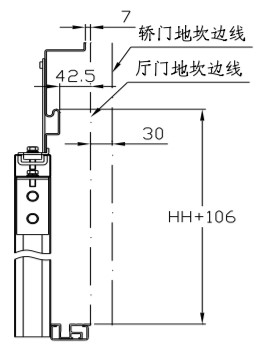

Ukuphakama kwesakhelo se-sill ephezulu yomnyango wokumisa: umgama phakathi kwendawo ephezulu yesikhokelo somgaqo wesikhokelo somnyango wokumisa kunye ne-sill yomnyango wokumisa ngu-HH + 106mm;
Umbindi wesakhelo se-sill ephezulu yomnyango wokumisa: ukuphambuka phakathi kombindi wesakhelo se-sill ephezulu yomnyango wokumisa kunye neziko lokungena kunye nokuphuma ngu-±1mm;
Umgama phakathi kwesikhokelo somzila wesikhokelo esiphezulu somnyango wokuhlalisa kunye ne-sill yomnyango wemoto: umgama phakathi komzila wesikhokelo esiphezulu se-sill yomnyango wokuhlalisa kunye ne-sill yomnyango wokuhlalisa ngu-42.5mm, kwaye umgama ukusuka kwi-sill yomnyango wemoto ngu-72.5mm.
Ukuphakama kwesakhelo se-sill ephezulu yomnyango wokumisa: umgama phakathi kwendawo ephezulu yesikhokelo somgaqo wesikhokelo somnyango wokumisa kunye ne-sill yomnyango wokumisa ngu-HH + 106mm;
Umbindi wesakhelo se-sill ephezulu yomnyango wokumisa: ukuphambuka phakathi kombindi wesakhelo se-sill ephezulu yomnyango wokumisa kunye neziko lokungena kunye nokuphuma ngu-±1mm;
Umgama phakathi kwesikhokelo somzila wesikhokelo esiphezulu somnyango wokuhlalisa kunye ne-sill yomnyango wemoto: umgama phakathi komzila wesikhokelo esiphezulu se-sill yomnyango wokuhlalisa kunye ne-sill yomnyango wokuhlalisa ngu-42.5mm, kwaye umgama ukusuka kwi-sill yomnyango wemoto ngu-72.5mm.
